Multi Purpose Distribution Cable 4-24 cores Fiber Optic Cable
- group name
- Indoor distribution cable
- Min Order
- 1 kilometer
- brand name
- RUX
- model
- GJFJV(H)
- Nearest port for product export
- Shenzhen, Hongkong, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 18:11:22 GMT
Paramtents
Fiber count 2-24 core
Fiber Type SM, OM1, OM2, OM3, OM4, OM5
Cable Diameter (mm) 4.8-8.1
Cable Weight( kg/km) 16-57
Application Indoor Any Purpose Cable Distribution
Application Backbone Distribution Cable in a building
Application Multi Optical Fiber Jumper
Cable Length 1km~4km per spool
MOQ 10 km
Packging & Delivery
-
Min Order1 kilometer
Briefing
Detailed

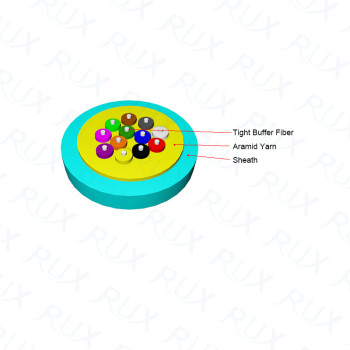

1.2 Characteristics
A. Tight buffer fiber easystrip
B. Tight buffer fiber has excellent flame-retardant performance
C. Aramid yarn as strengthmember make cable have excellent tensile strength
D. The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
1.3 Cable Application（Multi Purpose Distribution Cable）
A. Indoor any purpose cabledistribution
B. Backbone distributioncable in a building
C. Multi optical fiberjumper
1.4 Cable Properties
Transporttemperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
2. Optical Characteristics& Technical Parameters
2.1 Technical Parameters
|
Cable Code
|
Cable Diameter
mm |
Cable Weight(Ref) kg/km | Tensile strength Long/Short term mm |
Crush Resistance
Long/short term N/100mm |
Bending Radius
Dynamic/Static mm |
|
PVC jacket | LSZH jacket |
|||||
|
GJFJV(H)-4F
|
4.8±0.3
|
16.0 | 18.0 | 130/440 |
300/1000
|
20D/10D
|
|
GJFJV(H)-6F
|
5.1±0.3
|
20.0 | 23.0 | 130/440 |
300/1000
|
20D/10D
|
GJFJV(H)-8F | 5.6±03 | 27.0 | 31.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-12F | 6.2±03 | 32.0 | 36.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-24F | 8.1±0.3 | 53.0 | 57.0 | 400/1320 | 300/1000 | 20D/10D |
Fiber Type |
Attenuation |
OFL | Valid mode band width |
10G Ethernet link length SX |
Min. bending radius | |||
Condition | 1310/1550nm | 850/1300nm |
850/1300nm | 850nm | 850nm | |||
|
Typical
|
Max. | Typical | Max. |
|
|
|||
|
Unit
|
dB/km
|
dB/km | dB/km | dB/km | MHZ.km |
MHZ.km
|
m
|
mm |
G652D | 0.36/0.22 | 0.5/0.4 | 16 | |||||
G657A1 | 0.36/0.22 | 0.5/0.4 | 10 | |||||
G657A2 | 0.36/0.22 | 0.5/0.4 | 7.5 | |||||
OM1 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 | ||
OM2 | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 | ||
OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||
OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 | ||
3. Packing and shipping
3.1 The cables are packed in wooden drums andthen in carton box
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
RUX *** xxFIBRE Month/Year XXXXM
l RUX: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
