Multi Purpose Break-out Cable 4-48 cores indoor fiber optic cable

group name: Indoor distribution cable

Min Order: 1 kilometer

brand name: RUX

model: GJBFJV(H)

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Sat, 18 May 2024 20:03:04 GMT

contact supplier

Paramtents

Fiber Type G652D，G657A1，G657A2
Fiber Count 4-48
Strength Member Aramid Yarn

Packging & Delivery

Min Order1 kilometer

Briefing

Break-out cable use simplex cable as subunit. The subunits are around cable core(FRP). Cable is with PVC or LSZH jacket.

Detailed

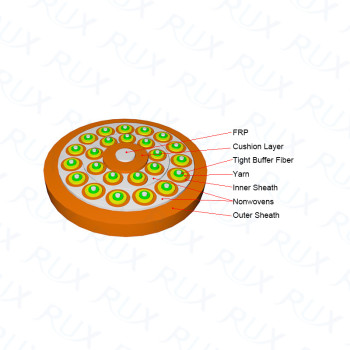

1.1 Cable Structure（Multi Purpose Break-out Cable/indoor fiber optic cable）

1.2 Characteristics

A. Stranded non-metallicstrength member structure ensure the cable endure larger tensile strength.

B. The outer jacketmaterial have many advantages such as anti-corrosion, anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

C. Aramid yarn as strengthmember make cable have excellent tensile strength

1.3 Cable Properties

Transporttemperature: - 20 deg C to + 60 deg C

Storage Temperature: - 20 deg C to + 60 deg C

Operating temperature: - 20 deg C to + 60 deg C

Installation temperature: - 5 deg C to + 50 deg C

2. Optical Characteristics& Technical Parameters

2.1 Technical Parameters

Cable Code	Cable Diameter mm	Cable Weight(Ref) kg/km		Tensile strength Long/Short term mm	Crush Resistance Long/short term N/100mm	Bending Radius Dynamic/Static mm
Cable Code	Cable Diameter mm	PVC jacket	LSZH jacket	Tensile strength Long/Short term mm	Crush Resistance Long/short term N/100mm	Bending Radius Dynamic/Static mm
GJBFJV(H)-4F	7.4±0.5	50.0	56.0	130/440	300/1000	20D/10D
GJBFJV(H)-6F	8.4±0.5	66.0	74.0	200/660	300/1000	20D/10D
GJBFJV(H)-8F	9.8±0.5	91.0	101.0	200/660	300/1000	20D/10D
GJBFJV(H)-12F	12.4±0.5	140.0	155.0	200/660	300/1000	20D/10D
GJBFJV(H)-18F	12.4±0.5	140.0	155.0	400/1320	300/1000	20D/10D
GJBFJV(H)-24F	14.4±0.5	181.0	201.0	400/1320	300/1000	20D/10D
GJBFJV(H)-36F	16.4±0.5	208.0	255.0	400/1320	300/1000	20D/10D
GJBFJV(H)-48F	19±0.5	280.0	344.0	400/1320	300/1000	20D/10D

2.2 Optical Characteristics

Fiber Type	Attenuation				OFL	Valid mode band width	10G Ethernet link length SX	Min. bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Typical	Max.	Typical	Max.
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4						16
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM1			3.0/1.0	3.5/1.5	≥500/500	≥2000	≤300	30
OM2			3.0/1.0	3.5/1.5	≥200/500	≥4700	≤550	30
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤350	30

3. Packing and shipping

3.1 The cables are packed in wooden drums andthen in carton box

3.2 Standard delivery length is 1km/roll or percustomer’s requirements.

3.3 Sheath Marking

The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX *** xxFIBRE Month/Year XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l xxFIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure of meter.
