Telecommunication Use Indoor FTTH Fiber Optic Cable GJXKFV

group name: FTTH Fiber Optical Cable

Min Order: 10 kilometer

brand name: RUX

model: GJXKFV

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Sat, 18 May 2024 23:16:53 GMT

contact supplier

Paramtents

Fiber type SM (G657A, G652D)
Strength member KFRP (kevlar FRP)
Outer sheath PVC/LSZH/LLDPE
Certification ISO9001
Packing 1km/wooden drum
OEM Available
Application FTTX
Outer packing carton (wooden pallets can be used if necessary)

Packging & Delivery

Min Order10 kilometer

Briefing

The optical fiber is positioned in the center. Two parallel KFRP is placed at two sides & cable is completed with LSZH sheath.

Detailed

Description（Indoor fiber optic cable GJXKFV）

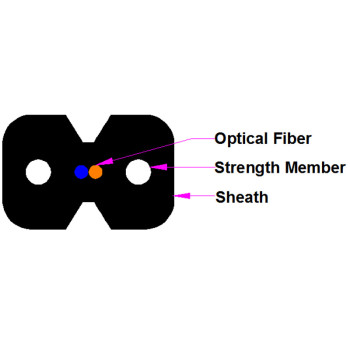

The optical fiber unit is positioned in the center. Two parallel Kevlar Fiber Reinforced Plastics (KFRP) are placed at the two sides. Then the cable is completed with a black or color LSZH/PVC sheath.

Technical parameter

Fiber type	Attenuation				OFL	Valid bandwidth	10G Ethernet link length SX	Minimum
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Nominal	Maximum	Nominal	Maximum	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Technical Parameters

Cable Type	Fiber Count	Cable Size mm	Cable Weight (ref) kg/km	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GJXH-1G.657A2	1	2.0x3.0(±0.1）	8.0	80/200	500/1000	15/30

Characteristics

Ø Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

Ø Two parallel KFRP strength members ensure good performance of crush resistance to protect the fiber;

Ø Simple structure, light weight and high practicability;

Ø Novel flute design, easily strip and splice, simplify the installation and maintenance;

Storage/Operating Temperature : -20°C to + 60°C

Application

1. Access network , fiber to the home

2. Support the Internet , CATV , telephone and more network service in the future.
