Single Mode 2.0*3.0 FRP Indoor Fiber Optic Cable for Networking Use
- group name
- FTTH Fiber Optical Cable
- Min Order
- 10 kilometer
- brand name
- RUX
- model
- GXFJH
- Nearest port for product export
- Shenzhen, Hongkong, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:51:22 GMT
Paramtents
Fiber type SM
Strength member FRP
Outer sheath PVC/LSZH/LLDPE
Sheath color black/white/as required
Certification ISO 9001
OEM Available
Packing 1km/wooden drum
Outer packing carton ( Wooden pallets if necessary)
Attenuation 1310≤0.4dB 1550≤0.3dB
Packging & Delivery
-
Min Order10 kilometer
Briefing
Detailed
Product description（FRP Indoor Fiber Optic Cable）

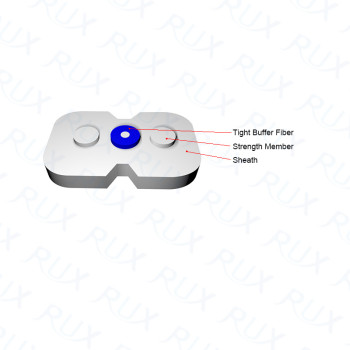

The optical fiber unit is positioned in the center.,two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath.
Technical parameter
|
Fiber type
|
Attenuation
|
OFL | Valid bandwidth | 10G Ethernet link length SX |
Minimum
|
|||
|
Condition
|
1310/1550nm
|
850/1300nm | 850/1300nm | 850nm | 850nm | |||
|
Nominal
|
Maximum
|
Nominal | Maximum |
|||||
|
Unit
|
dB/km
|
dB/km
|
dB/km | dB/km | MHZ.km | MHZ.km | m |
mm
|
G657A1 | 0.36/0.22 | 0.5/0.4 | 10 | |||||
G657A2 | 0.36/0.22 | 0.5/0.4 | 7.5 | |||||
OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||
OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 | ||
Characteristics
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
3. Simple structure, light weight and high practicability
4. Novel flute design, easily strip and splice, simplify the installation and maintenance
1. Access network , fiber to the home
2. Support the Internet , CATV , telephone and more network service in the future.
