SM Stranded Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable

group name: Outdoor fiber optic cable

Min Order: 10 kilometer

brand name: RUX

model: GYFTY

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:31:38 GMT

contact supplier

Paramtents

Fiber Count 2~144 cores
Fiber Type G652D; G657A
Strength Member FRP
Filler PP
Water blocking material Water Block Tape/ Jelly
Loose tube PBT(2.0mm-3.5mm)
Outher sheath Ploythene (PE) Jacket
Package 2 kilometer per drum
Application Aerial / Duct
Feature SM Stranded Loose Tube Non-metallic Strength Member Non-armored

Packging & Delivery

Min Order10 kilometer

Briefing

Non Metallic Strength Member (FRP),PBT Loose Tube,PE sheath, Fiber count can be customised & Duct/Aerial Application

Detailed

1.1 General Design（Outdoor fiber optic cable）

Optical Fiber is constructed of a germanium doped silica based core with a pure silicacladding which meets ITU-T G.652 standard. Two layers of UV curable acrylateprotective coating are applied over the cladding to provide maximum fiber lifetime.

1.2 G.652.D fiber

1) Construction
Mode Field Diameter @ 1310 nm	9.2 +/-0.4 µm
Core-Cladding concentricity error	≤0.4 µm
Cladding diameter	125 +/-1 µm
Cladding non-circularity	≤1 %
Primary coating material	UV curable acrylate
Primary coating Diameter	250 +/-15 µm(Colored)
2) Optical Characteristics
Attenuation @ 1310nm	≤0.36 dB/km
Attenuation @ 1383nm	≤0.35 dB/km
Attenuation @ 1550nm	≤0.22 dB/km
Dispersion @ 1288~1339nm	≤3.5 ps/(nm.km)
Dispersion @ 1271~1360nm	≤5.3 ps/(nm.km)
Dispersion @ 1550nm	≤18.0 ps/(nm.km)
Zero dispersion wavelength	1300 – 1324 nm
Zero dispersion slope	≤ 0.092 ps/nm²×km
Cabled cut-off wavelength (lcc)	≤1260 nm
Polarization Mode Dispersion	≤0.2 ps/√_km
3) Mechanical Characteristics
Proof stress level	1.2 % (0.86 GPa)
Fiber curl (Fiber radius of curvature)	≥4 m
Macro bending induced attenuation	100 turns 30 mm radius ≤ 0.1 dB at 1550nm
4) Refractive index	1.466 @ 1310nm 1.467 @ 1550nm

2. Fiber Optic Cable

2.1 GeneralDesign

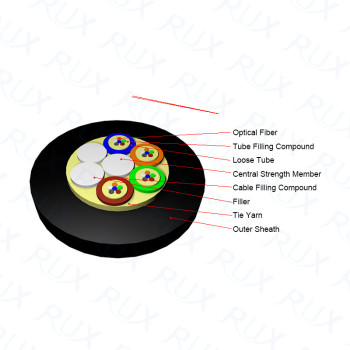

The colorcoded fibers are housed in multiple color coded plastic loose tubes which arestranded around a central strength member utilizing Reverse Oscillating Lay(ROL).

Waterblocking yarn and water-blocking tape, filling the interstices within the core,provides protection against water ingress.MDPE sheath with 2 rip cords iscovered over the cable core.

2.2 Construction

Item	Specification
Central strength member	FRP OD: 2.0mm(8,12,16,24,36 fibers) 2.3mm(48,72 fibers) 2.5mm(96 fiber) 3.0mm(144 fiber)
Loose tube	PBT OD: Nom.2.0mm(8,12,16,24,36 fibers) OD:Nom.2.2mm(48,72,96,144 fibers) Thickness:0.3mm
Filler	Plastic OD: 1.95mm(8,12,16,24,36 fibers) 2.15mm(48,72,96,144 fibers)
Rip-cord	3 strands per pcs(Symmetrial distribution in the sheath)
Water-blocking tape	20mm0.25mm(8,12,16,24,36 fibers) 22mm0.25mm(48,72 fibers) 28mm0.25mm(96 fiber) 36mm0.25mm(144 fiber)
Outer sheath	MDPE Thickness:2.0mm

2.3 Loose Tube Stranding

Fiber count	Max.fiber number per tube	Number of tube / Filler
8/12	6	2 / 4
16	6	3 / 3
24	6	4 / 2
36	6	6 / 0
48	12	4 / 2
72	12	6 / 0
96	12	8 / 0
144	12	12 / 0

2.4 Cable Diameter and Weight

Fiber count	Nom. diameter (mm)	Nom. weight (kg/km)
8/12/16/24/36	10.5	82
48/72	11.2	94
96	12.6	119
144	15.4	179

2.5 Sheath Marking

The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.

Re-markingis yellow color, if necessary.

RUX *** xxFIBRE Month/Year XXXXM

RUX: Manufacturer’s Name

***: Customer’s name

xxFIBRE: Fiber count

Month/Year:Manufacture date

XXXXM: The figure ofmeter.
