Low Friction Figure 8 Outdoor Fiber Optic Drop Cable

group name: Customized Fiber Optic Cable

Min Order: 10 kilometer

brand name: RUX

model: GJYXFCH

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:21:37 GMT

contact supplier

Paramtents

Product name Low Friction Figure 8 Outdoor Fiber Optic Cable
Fiber type SM
Fiber count 1/2/4/8/12
Strength member FRP
Messenger wire Aramid Yarn or FRP
Outer sheath Low friction LSZH
Sheath color Grey/black
Certification ISO9001
OEM Available
Packing 1km/wooden drum

Packging & Delivery

Min Order10 kilometer

Briefing

Low friction, good performance. Low Friction Figure 8 Outdoor Fiber Optic Drop Cable

Detailed

Product description （Outdoor Fiber Optic Cable）

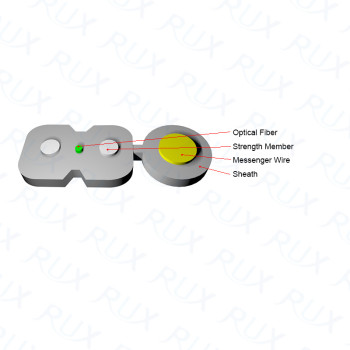

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires or KFRP are placed at the two sides.Then another FRP as the additional strength member is also applied. Then the cable is completed with a grey or black LSZH sheath.

Technical parameter

Items		Specifications
Fiber Type		G.657A2（Fujikura Joint-venture Manufacture or Draka）
Colored fiber		1（Colored Green）
Strength Member		2pcs*0.5mm FRP
Self-supporting Unit/Messenger		1.2mm FRP
Outer Jacket	Dimension	（2.0± 0.1 mm）H × （5.3 ± 0.3 mm）W
	Material	Low Friction LSZH - Low smoke zero halogen
	Colored	Grey RAL7004HR
Cable Attenuation	@ 1310 nm	≤ 0.40 dB/km
	@ 1550 nm	≤ 0.30 dB/km
Cable Printing		Customize

Mechanical and environmental characteristics

Items	Unit	Specifications
Tension（Long Term）	N	300 (200)
Tension（Short Term）	N	600 (400)
Crush（Long Term）	N/10cm	1000
Crush（Short Term）	N/10cm	2200
Min. Bend Radius（Dynamic）	mm	30
Min. Bend Radius（Static）	mm	15
Operation temperature	℃	-20～+70
Transport &Storage temperature	℃	-20～+70
Install the temperature	℃	0～+50

Characteristic

1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2.Two parallel FRP or KFRP or steel wire as strength memners ensure good performance of crush resistance to protect the fiber.

3.Aramid yarn as the traditional strength member ensures god performance of tensile strength.

4.Simple structure,light weight and high practicablity.

5.Novel flute design, easily strip and splice,simplity the installation and maintenance.

6. Low smoke, zero halogen and flame retardant Low friction sheath.

Application

1. Access network , fiber to the home

2. Support the Internet , CATV , telephone and more network service in the future.
