Round Indoor Drop Cable Indoor distribution cable; Riser Cable; G657B3 LSZH Tight buffer fiber cable

group name: Indoor distribution cable

Min Order: 1 kilometer

brand name: RUX

model: GJFJH

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:58:28 GMT

contact supplier

Paramtents

Fiber Type G652D，G657A1，G657A2
Strength Member Aramid Yarn
OEM Available

Packging & Delivery

Min Order1 kilometer

Briefing

Round drop cable is by using tight buffer and aramid yarn. Completed with PVC or LSZH sheath.

Detailed

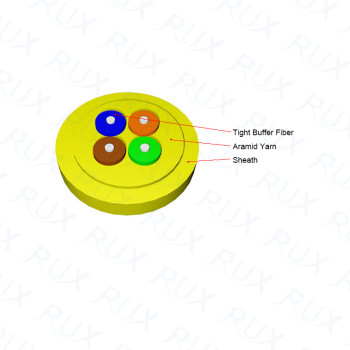

1.1 CableStructure

1.2 Characteristics

A. Tight buffer fiber easystrip

B. Tight buffer fiber has excellent flame-retardant performance

C. Aramid yarn as strength member make cable have excellent tensile strength

D. The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

1.3 Cable Application（Round Indoor Drop Cable）

A. As access cable in access network or premises network;

B. As building cable in premises distribution system, such as shaft cabling, drainage tubes cabling ,trough cabling, wall cabling, ceiling cabling, especially in the environment of high requirements of flexibility and bending properties;

C. Used in communication between outdoor AP and ONT.

1.4 CableProperties

Transporttemperature: - 20 deg C to + 60 deg C

Storage Temperature: - 20 deg C to + 60 deg C

Operating temperature: - 20 deg C to + 60 deg C

Installation temperature: - 5 deg C to + 50 deg C

2. Optical Characteristics

Fiber Type	Attenuation				OFL	Valid mode band width	10G Ethernet link length SX	Min. bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Typical	Max.	Typical	Max.	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4						16
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM1			3.0/1.0	3.5/1.5	≥500/500	≥2000	≤300	30
OM2			3.0/1.0	3.5/1.5	≥200/500	≥4700	≤550	30
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤350	30

3. Packing and shipping

3.1 The cables are packed in wooden drums andthen in carton box

3.2 Standard delivery length is 1km/roll or percustomer’s requirements.

3.3 Sheath Marking

The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX *** xxFIBRE Month/Year XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l xxFIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure of meter.
