GJYXFH Bow-type Drop Cable for Duct FRP Strength Member Douth Sheath 1-12 cores Fiber Optic Cable

group name: FTTH Fiber Optical Cable

Min Order: 1 kilometer

brand name: RUX

model: GJYXFH

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:38:58 GMT

contact supplier

Paramtents

Fiber Type G657A1，G657A2
Fiber Count 1-12 cores
OEM Available

Packging & Delivery

Min Order1 kilometer

Briefing

Inside is GJYX indoor drop cable, with fiber and LSZH inner sheath. Cable is completed with water blocking tape and PE sheath.

Detailed

1. General

1.1 CableDescription（GJYXFH Bow-type Drop Cable for Duct）

The optical fiber unit ispositioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wire areplaced at the two sides. Then the cable is completed with a black or color LSZHsheath and water blocking tape (or aramid yarn). Finally the cable is completed with a PE sheath

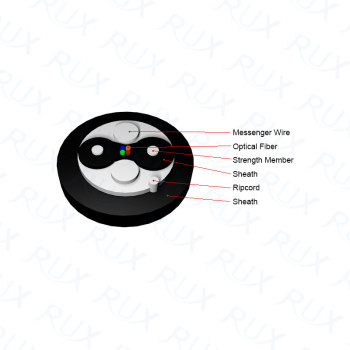

1.2 CableStructure

1.3 Cable Characteristics

l Speciallow-ben-sensitivity fiber provides high bandwidth and excellent communicationtransmission property.

l Two parallel FRP strength members ensure good performance of crushresistance to protect the fiber.

l Simple structure, light weight and high practicability

l Novel flute design easily strip and splice, simplify the installationand maintenance.

l Low smoke, zero halogenand flame retardant sheath; PE sheath protects cale from ultraviolet radiation

l Water blocking tape enhance moisture proof. Aramid yarn enhance tensile strength.

2. Optical Characteristics & Technical Parameters

2.1 Optical Characteristics

Fiber type	Attenuation				OFL	Valid bandwidth	10G Ethernet link length SX	Minimum
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Nominal	Maximum	Nominal	Maximum	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

2.2 Technical Parameters

Cable Type	Fiber Count	Cable Size mm	Cable Weight (ref) kg/km	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GJYXFHA-1-12F	1-12	7.4mm	59	200/600	2000	10D/20D

3. Packingand shipping

3.1 The cables are packed in plywood drums.

3.2 Standard delivery length is 2km/drum or percustomer’s requirements.

3.3 Sheath Marking

The sheath marking are hot stamped or engraved on the sheath at one meter intervalwith white color. The accuracy of the length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX *** xx FIBRE Month/Year XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l Xx FIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure ofmeter.
