Patch Cord SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

contact supplier

Paramtents

Packging & Delivery

Briefing

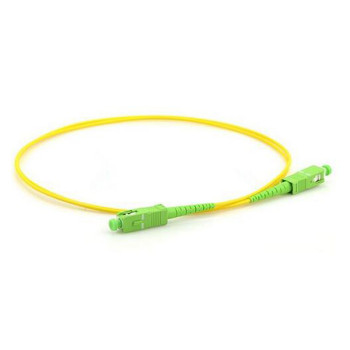

Patch Cord with SC/APC SC/APC Connector at Both Ends. Length of Cable Can Be Customized.

Detailed

1.Product features（Fiber Optic Patch Cord）

• Low insertion loss and high return loss

• Excellent endface geometry parameter

• Special specificatiion availabel upon customer’srequest.

2.Applications

• Datatransmission Networks

• Imagetransmission Networks

• CATV

• Optical test instrument

• Photoelectricautomatic control system

3.Product Sketch Map

Figure 1：SC/APC-SC/APC-SM-SX

Remarks:1.“L”stands for the order length；

4.Optical Performance

4.1 Optical performance index ofoptical fiber cable

4.2 Optical performance index of connector

Enclosure 1、Environmental performance of products

Enclosure2、Mechanical properties of products

Project	Test condition	Index	Monitoring proportion
To attack	1.8m, three axial, 8 times / axial	ΔIL≤0.2dB	Random monitoring of WIP 5pcs
Vibration	10 to 50HZ, 45 times /min, amplitude 0.75mm, three axial. Each axial 30min	ΔIL≤0.2dB
Reverse	Distance machine 20 to 28cm, + 180 degrees, 6s/ times, 25 times	ΔIL≤0.2dB
tensile	The distance from the plug is 20 to 28cm, 1min, and the load is 50N	ΔIL≤0.2dB

Enclosure3、Reference standard

1.Domestic standard：

GB/T 12507.1-2000《Fibre optic cableconnectors - Part 1: General specification》

YD/T 1272.3-2005《Optical fiber connector part third: SC》

YD/T 2152-2010《Optical fiber connector reliability requirements andtest methods》

YD/T 1198-2002《echnical requirements for ferrule of optical fiberactive connecto》

YD/T 1258.1-2003《Indoor cable series is the first part of the total》

YD/T 1258.2-2003《Indoor cable series second part single core opticalfiber》

2.International standard:

GR-326-CORE 《General requirements for single-mode opticalfiber connectors and jumper assemblies》
