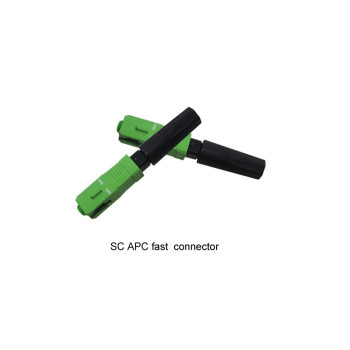

SC/APC FTTH Fast Connector Field Assembly Quick Connector

group name: Fiber Optic Fast Connector

Min Order: 10 piece

brand name: RUX

model: SC/APC fast connector

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 19:21:07 GMT

contact supplier

Paramtents

Product name SC/APC fast connector
Connector type SC/APC
Return loss ≥50 dB
Certification ISO 9001
MOQ 10 PCS

Packging & Delivery

Min Order10 piece

Briefing

Widely used fast connector. SC/APC FTTH Fast Connector

Detailed

Product description（SC/APC FTTH fast connector）

The field assembly SC/PC SC/APC fast connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.

Technical parameter

Applicable for	3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Optical fiber diameter	φ125um (657A&657B)
Tight buffer diameter	φ250um
Fiber mode	Single mode
Operation time	About 10s (exclude fiber cut)
Insert loss	≤0.3dB (1310nm & 1550nm)
Return loss	≥50dB
Fastening strength of naked fiber	≥ 5N
Tight clamping force cladding	≥ 8N
Tensile strength	≥ 50N
Using temperature	-45°C~+80°C

Characteriistics

Standards of IEC, Telcordia

60 seconds installation time

Can be used 10 times

Low insertion loss

Compatible with standard SC connectors;

Field installable, cost effective, user friendly;

UPC, APC polishing optional;

No electricity required;

FTTH cable, fiber optic cable optional;

Reliable durable and superior optical performance.

Appication

1. Patch panel.

2. Distribution Frame

3. FTTH
