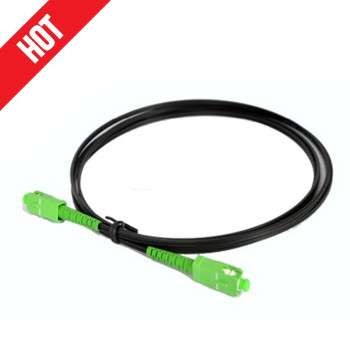

Patch Lead/ SC/APC-SC/APC-SM-SX-GJXH-xxM All dielectric self-supporting aerial cable Patch Cord
- group name
- Patch cord/ pigtail
- Min Order
- 100 piece
- brand name
- RUX
- model
- SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM
- Nearest port for product export
- Shenzhen, Hongkong, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:30:09 GMT
Paramtents
Fiber Type SM/MM G657A/G652D
Connector SC/APC
Cable Sheath LSZH Jacket
Cable strength member FRP / Steel wire
Cable Length 3M/ 5M/ 10M / 20M / 50M / 100M
Insertion loss ≤0.2 dB
Return loss ≥55 dB
Application Fiber to the home patch cord
Brand Name RUX
MOQ 100 pieces
Packging & Delivery
-
Min Order100 piece
Briefing
Detailed
1.Product features（Fiber Optic Patch Cord）
•Low insertion loss and high return loss
•Excellent endface geometry parameter
•Special specificatiion availabel upon customer’srequest.
2.Applications
•Datatransmission Networks
•Imagetransmission Networks
•CATV
•Optical test instrument
•Photoelectricautomatic control system
3.Product Sketch Map
Figure 1：SC/APC-SC/APC-SM-SX
Remarks:1.“L”stands for the order length；
4.Optical Performance
4.1 Optical performance index of optical fiber cable
|
Item
|
Unnit
|
Index
|
Remarks
|
|
Cable cutoff wavelength
|
nm
|
≤1260
|
|
|
Bend radius
|
mm
|
≥30
|
|
|
Attenuation value
|
dB/km
|
≦0.36（1310nm）
≦0.25（1550nm |
|
Flame retardancy | / | Accord with UL94-V0 standard |
|
Item
|
Unnit
|
Index
|
Remarks
|
|
Operating wavelength
|
nm
|
1260～1650
|
|
|
Insertion loss
|
dB
|
≤0.3
|
|
|
Return loss
|
dB
|
≥50
|
|
Repeatability | dB | ≤0.1 | |
Interchangeability | dB | ≤0.2 | |
Working temperature | ℃ | -40～+85 |
|
Project
|
Test condition
|
Index
|
Monitoring proportion
|
|
High temperature
|
85℃，96H
|
ΔIL≤0.2dB
|
Random monitoring of WIP 5pcs
|
|
Low temperature
|
-40℃，96H
|
ΔIL≤0.2dB
|
|
|
Loop
|
-40～+85℃，3.5H/Cycle，40 times loop
|
ΔIL≤0.2dB
|
|
Hot and humid | 110℃，90%RH，2 atmospheric pressure，96H | ΔIL≤0.2dB | |
Immersion | 43ºC, PH5.5，168H | ΔIL≤0.2dB |
|
Project
|
Test condition
|
Index
|
Monitoring proportion
|
|
To attack
|
1.8m, three axial, 8 times / axial
|
ΔIL≤0.2dB
|
Random monitoring of WIP 5pcs
|
|
Vibration
|
10 to 50HZ, 45 times /min, amplitude 0.75mm, three axial. Each axial 30min
|
ΔIL≤0.2dB
|
|
|
Reverse
|
Distance machine 20 to 28cm, + 180 degrees, 6s/ times, 25 times
|
ΔIL≤0.2dB
|
|
tensile | The distance from the plug is 20 to 28cm, 1min, and the load is 50N | ΔIL≤0.2dB |
Enclosure3、Reference standard
1.Domestic standard：
GB/T 12507.1-2000《Fibre optic cableconnectors - Part 1: General specification》
YD/T 1272.3-2005《Optical fiber connector part third: SC》
YD/T 2152-2010《Optical fiber connector reliability requirements andtest methods》
YD/T 1198-2002《echnical requirements for ferrule of optical fiberactive connecto》
YD/T 1258.1-2003《Indoor cable series is the first part of the total》
YD/T 1258.2-2003《Indoor cable series second part single core opticalfiber》
2.International standard:
GR-326-CORE 《General requirements for single-mode opticalfiber connectors and jumper assemblies》。
