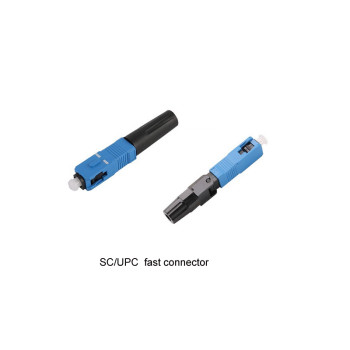

FTTH Field Assembly Quick Fiber Optic Fast Connector SC/UPC

group name: Fiber Optic Fast Connector

Min Order: 10 piece

brand name: RUX

model: SC/UPC Fast connector

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:00:45 GMT

contact supplier

Paramtents

Model number SC/UPC fast connector
Diameter 0.9mm, 2.0mm, 3.0mm, Others
Insertion loss ≤0.25dB
Return loss ≥50 dB
Certification ISO 9001
Packing Blister box
Outer packing carton

Packging & Delivery

Min Order10 piece

Briefing

Widely used in FTTX. FTTH Field Assembly Quick Fiber Optic Fast Connector SC/UPC

Detailed

Product description（Fast Connector SC/UPC）

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE

Features

1.No special tools needed when installed;

2.Can be made on-site without splicing connectors ;

3.Only 30 seconds needed to learn the process of installation and making;

4.Can be intalled and maked repeatedly thus avoiding loss

Technical parameter

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Applications

1. CATV

2. Active device termination

3. Telecommunication networks

4. Metro

5. Local Area Networks (LANs)

6. Data processing networks

7. Test equipment

8. Premise installation

9. Wide Area Networks(WANs)
