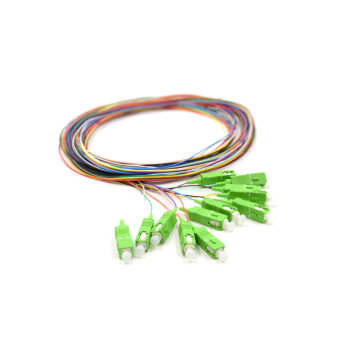

12 core Fiber Optic 0.9mm SC SM Singlemode Fiber Optic Pigtail

group name: Patch cord/ pigtail

Min Order: 100 piece

brand name: RUX

model: SC/APC pigtail

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:50:55 GMT

contact supplier

Paramtents

Connetor SC/APC
Fiber type SM
Length 0.5/1/1/5m or customized
Delivery Within 7 days
OEM Available

Packging & Delivery

Min Order100 piece

Briefing

Good mechnical performance. Customized length. 12 core Fiber Optic 0.9mm SC SM Singlemode Fiber Optic Pigtail

Detailed

FTTH SC/APC Fan-out Fascicular singlemode Optical Fiber Pigtail

Introduction:

Fiber optic pigtail is a piece of fiber optic cable with only one fiber optic connector, it is typically used to link fiber optic cable with other fiber optic equipment. The connector side is mainly in charge of the connections while the other side is melted together with fiber glasses to achieve minimum insertion loss. We provide a full range of fiber optic pigtails, such as SC, SC/APC, ST, FC, FC/APC, LC, LC/APC, E2000 and E2000/APC for both single mode and multi mode. These pigtails can be used with various types of fiber optic terminations, including SC, FC ST, LC, MU, MTRJ, MPO etc.

Description:

Single mode fiber optic pigtails

Available in: SPC (Super Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact)
Fiber type: G652D or G657A
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection

Multi mode fiber optic pigtails

Fiber types: OM1, OM2 and OM3
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection

Technical parameter

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-40℃ to 85℃
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
