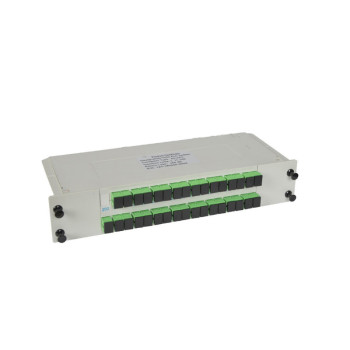

Supply FTTH 1*32 Fiber Optic Cassette PLC Splitter

group name: Fiber Optic Splitter

Min Order: 10 piece

brand name: RUX

model: Cassette PLC Splitter

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Wed, 04 Dec 2024 00:38:39 GMT

contact supplier

Paramtents

Brand name OEM
Fiber type G657A1 or as request
Connector type SC/APC or SC/UPC

Packging & Delivery

Min Order10 piece

Briefing

Goof mechanical performance. Supply FTTH 1*32 Fiber Optic Cassette PLC Splitter

Detailed

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small volume, wide operating wavelength range, high reliability, good uniformity of spectrophotometer and so on. For passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and to achieve optical signal shunt. The 1xN and 2xN splitters evenly divide the optical signal into multiple outlets evenly from a single or dual inlet, or vice versa, to import multiple optical signals into a single or two root fiber.

Features:

1.Mini type PLC Splitter's input and output tube diameter is 900um
2.Compact size, compare to the other PLC Splitter, Mini PLC Splitter's structure is smaller

Application:

1.FTTx Deployments(GPON/BPON/EPON)
2.Cable television (CATV)
3.Local area networks (LAN)
4.Test equipment
5.Passive optical networks(PON)

Specification:

1xN PLC Splitter Specification
Operating Wavelength	1260~1650(nm)
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40~+85
Directivity (dB)	≥ 55
Storage Temperature	-40~+85
