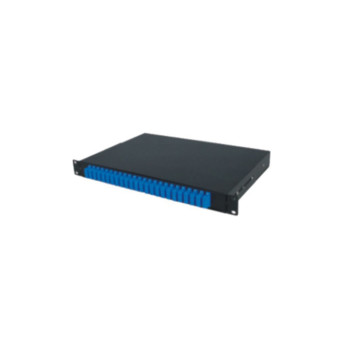

19" Fiber Optic Patch Panel Rack Mount Sliding Terminal Box

group name: Fiber Optical Accessories

Min Order: 10 piece

brand name: RUX

model: Terminal Box

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Fri, 22 Nov 2024 02:05:48 GMT

contact supplier

Paramtents

Product name 19
Operating temperature -40℃~+60℃
Packing quantity 10 cases per box
Port 12/24/48
Panel connector SC/LC/ST/FC
Application FTTH
Material ABS plastic
Certification ISO 9001

Packging & Delivery

Min Order10 piece

Briefing

Light weight for FTTH use.19" Fiber Optic Patch Panel Rack Mount Sliding Terminal Box

Detailed

Features（Sliding Terminal Box）:

1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

Application:

1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV

Fiber Capacity of panel	12-144 core(12 24 48 port usually)
Panel Connector	SC LC ST FC
Type	Sliding Fixed
Dimension	19'' 1U/2U/3U/4U...
Material	Cold Rolled Steel or Aluminum
Storage Temperature	-45~+65℃
Thickness	1.0 1.2 mm
	Cable ties, mounting ear screws, and spiral wrap tube
