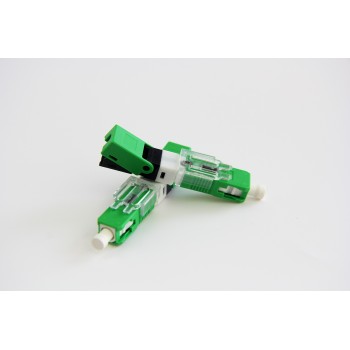

Mechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast Connector

Mechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast Connector
Mechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast ConnectorMechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast ConnectorMechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast ConnectorMechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast Connector
group name
Fiber Optic Fast Connector
Min Order
1 piece
brand name
RUX
model
ESC250D/APC ESC250D/UPC
Nearest port for product export
Shenzhen, Hongkong, Ningbo, Shanghai
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, PayPal, Westem Union, Cash
update time
Sat, 18 May 2024 20:45:14 GMT

Paramtents

  • Mode SM

  • Application FTTX

  • OEM Available

Packging & Delivery

  • Min Order1 piece

Briefing

Mechanical Fiber Optic Connector-Fiber Pre-embeded ESC250D/APC ESC250D/UPC Fast Connector

Detailed

ESC250D/APC ESC250D/UPC

Application(ESC250D/APC ESC250D/UPC Fast Connector)

FTTxData Room Transformation

E-SC250D Fiber Optic Connector

Cutting 250um fiber 20.85mm, 125um fiber 7.7mm


Technical specification

Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size

51*9*7.55mm

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15sexclude fiber presetting)

Insertion Loss

≤ 0.3dB1310nm & 1550nm)

Return Loss

≤ -50dB for UPC, ≤ 55dB for APC

Success Rate

>98%

Reusable Times

>10 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>50 N

Temperature

-40 ~ +85 C

On-line Tensile Strength Test (20 N)

 IL ≤ 0.3dB

Mechanical Durability500 times)

 IL ≤ 0.3dB

Drop Test4m concrete floor, once each direction, three times total)

 IL ≤ 0.3dB

Relevant Solutions

  • Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
  • With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
  • Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
