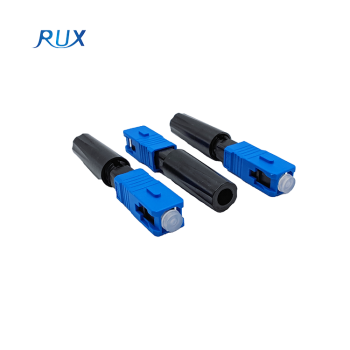

FTTH Fiber Optic Fast Connector SC UPC APC Optical Fiber Quick Connector

group name: Fiber Optic Fast Connector

Min Order: 100 piece

brand name: RUX

model: SC/APC SC/UPC

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:54:17 GMT

contact supplier

Paramtents

Application FTTH Drop Cable
Fiber Type Single Mode
Color Blue /Green
Insertion Loss ≤ 0.3dB
Return Loss ≥ 55dB
Connector Type SC
Wavelength 1310/1550nm
No. of Fiber 1

Packging & Delivery

Min Order100 piece

Briefing

FTTH Fiber Optic Fast Connector SC UPC APC Optical Fiber Quick Connector

Detailed

Description

FTTH Fiber Optic Fast Connector SC UPC APC Optical Fiber Quick Connector

Quick connector is a good way to solve the field wiring operations and fiber to the home project of the connector. Assembly without the need for glue, grinding and electrical tools, is widely used in the construction site need to quickly connect the place for the operation to provide a fast and stable connector.

Technical Data

ITEM	Technical Parameters
Application	FTTH Drop Cable
Optical fiber diameter	125μm ( 652 & 657 )
Fiber Type	Single Mode
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≥ 55dB
Connector Type	SC
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C

Products Features

* the fast connector is designed for high quality and high efficiency for installation.
* the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Optical Network Unit.
* adopted fiber pre-installed structure.
* could be reused, and convenient for field installation.

Application

* Fiber Optic Distrbution Frame.
* Optical Network Unit.
* CATV.
* FTTH.
