Multiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution Box

Multiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution Box
Multiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution BoxMultiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution BoxMultiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution BoxMultiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution BoxMultiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution Box
group name
Fiber Optic Terminal Box
Min Order
10 piece
brand name
RUX
model
MST
Nearest port for product export
Shenzhen, Hongkong, Ningbo, Shanghai
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, PayPal, Westem Union, Cash
update time
Thu, 21 Nov 2024 16:57:38 GMT

Paramtents

  • Application FTTH FTTB FTTX Network

  • Color Black

  • Material PC

  • Dimensions 365*137*90mm(Without cover)

  • No. of Fiber 12

Packging & Delivery

  • Min Order10 piece

Briefing

Multiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution Box

Detailed

Description

Multiport Service Terminal Ftta Fttx Ftth Terminal Box Fiber Optic Distribution Box

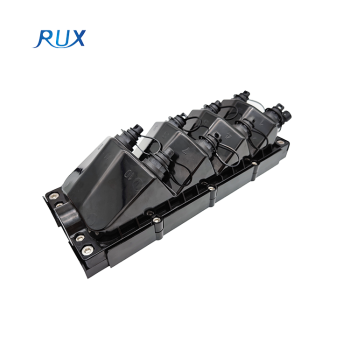

Multiport Service Terminal (MST) Box FastConnect closure used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%.It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.

Technical Data
ITEM
Technical Parameters
Dimensions LxWxH
365*137*90mm(Without cover);375*142*120mm(With cover)
Max Capacity
1pcs 12core pigtail or 1pcs 1*12 PLC splitter or 1pcs MPO to 12 SC patchcord
Mounting Type
wall mount, pole mount and aerial mount
IP Level
IP67
Application
Outdoor FTTA
Material
PC
Color
Black
Reinforced Adapter
4/6/8/12pcs OPT adaptor
Tempreture Rage
-40~80℃
Products Features
* High compatibility: can be assembled ODVA, Hconn(OptiTap™ compatible), Mini SC, AARC, PTLC, PTMPO or Factory-sealed or field assembly
* Strong enough: working under 1200N pulling force long term
* From 2 to 12 ports for single or multifiber harsh connectors
* Available with PLC or splice sleeve for fiber divide
* IP67 waterproof rating
* Wall mounting, aerial installation or holding pole installation
* Decreased angle surface and height make sure no connector interfering when operating
* Cost effective: save 40% operating time
Application
*Outdoor FTTA
