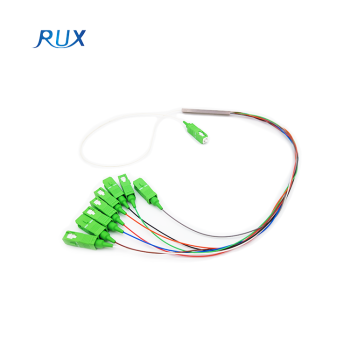

Sc Apc 1x2 1x4 1x8 1x16 1x32 0.9mm Mini Steel Tube Plc Splitter Fiber Optical Splitter

group name: Fiber Optic Splitter

Min Order: 10 piece

brand name: RUX

model: mini type Sc Apc

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:43:38 GMT

contact supplier

Paramtents

Port 1x2 1x4 1x8 1x16 1x32
Fiber type G.657A/G652D/Customized
Operating Wavelength(nm) 1260~1650
Return Loss (dB) ≥50
Directivity (dB) ≥55
Operating Temperature (°C) -40~+85
Application FTTH

Packging & Delivery

Min Order10 piece

Briefing

Sc Apc 1x2 1x4 1x8 1x16 1x32 0.9mm Mini Steel Tube Plc Splitter Fiber Optical Splitter

Detailed

Description

Sc Apc 1x2 1x4 1x8 1x16 1x32 0.9mm Mini Steel Tube Plc Splitter Fiber Optical Splitter

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small volume, wide operating wavelength range, high reliability, good uniformity of spectrophotometer and so on. For passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and to achieve optical signal shunt. The 1xN and 2xN splitters evenly divide the optical signal into multiple outlets evenly from a single or dual inlet, or vice versa, to import multiple optical signals into a single or two root fiber.

Technical Data

ITEM		Unit	Technical Parameters
Port Configuration		\	1x2	1x4	1x8	1x16	1x32
Fiber Type		\	G657A or customer specified
Operating Wavelength		nm	1260~1650
Insertion Loss	Max	dB	3.8	7.1	10.4	13.7	17
Loss Uniformity	Max	dB	0.4	0.6	0.8	1.2	1.5
Return Loss	Min	dB	50	50	50	50	50
Polarization Dependent Loss	Max	dB	0.2	0.2	0.3	0.3	0.3
Directivity	Min	dB	55	55	55	55	55
Wavelength Dependent Loss	Max	dB	0.3	0.3	0.3	0.5	0.5
Temperature Stability(-40~85 °C)	Max	dB	0.5
Operating Temperature		°C	-40~85
Storage Temperature		°C	-40~85

Products Features

* Low Insertion loss and low Polarization Dependent loss
* Low PDL

* High channel counts
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: 1260-1650nm
* Wide Operating Temperature: -40°C - 85°C
* High Reliability and Stability

Application

* FTTX Systems

* PON Networks

* CATV Links

* Optical Signal Distribution

* Local Areal Networks (LAN)

* Fiber Communication Systems
