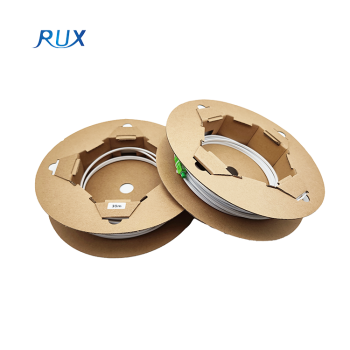

SC/APC 1 Core GJXFH Fiber Optic Patch Cord

group name: Patch cord/ pigtail

Min Order: 10 piece

brand name: RUX

model: GJXFH

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Sat, 18 May 2024 22:03:09 GMT

contact supplier

Paramtents

Fiber Type G652D/G657A1/G657A2
Color White
Jacket Material LSZH
Working Wavelength (nm) 1310/1550
No. of Fiber 1
lnsertion Loss (dB) ≤0.2dB
Return Loss (dB) ≥60dB

Packging & Delivery

Min Order10 piece

Briefing

FTTH Indoor/Outdoor SC/APC 1 Core GJXFH Fiber Optic Patch Cord

Detailed

Description

SC/APC 1 Core GJXFH Fiber Optic Patch Cord

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Technical Data

ITEM	Technical Parameters
Fiber Type	Single Mode G652D/G657A
Jacket Material	LSZH
Length (M)	30
Connector Type	SC
End Face	APC
Working Wavelength (nm)	1310/1550
Insertion Loss (dB)	≤0.2dB
Return Loss (dB)	APC ≥60dB
Operating Temperature（℃）	-40～85

Products Features

* Low insertion loss
* High return loss
* Excellent Repeatability,exchangebility,wearability and stability
* Environmentally Stable

Application

* Optical fiber communications system
* Optical fiber access networks
* Optical fiber CATV
* Optical fiber test equipments
* Optical fiber data communication
