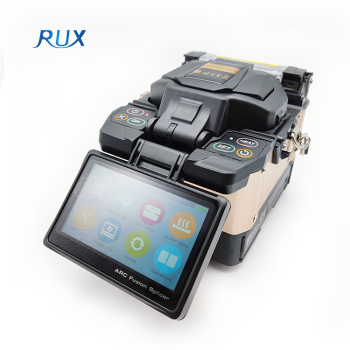

Ftth Handheld Small Optical Fiber Fusion Splicer Machine Core Alignment Fusion Splicer

group name: Fiber Optic Fusion Splicer

Min Order: 1 piece

brand name: RUX

model: Core Alignment Fusion Splicer

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:45:07 GMT

contact supplier

Paramtents

Number of Fiber Single
Dimension 130W*155L*125H
Weight 1.75kg (with battery)
Return Loss ≥60dB
Operating Methods Button/Touch Screen
Splicing Time Quick mode 6s

Packging & Delivery

Min Order1 piece

Briefing

Ftth Handheld Small Optical Fiber Fusion Splicer Machine Core Alignment Fusion Splicer

Detailed

Description

Ftth Handheld Small Optical Fiber Fusion Splicer Machine Core Alignment Fusion Splicer

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Technical Data

ITEM	Technical Parameters
Core Monitor Type	PAS core technology
Dimension	130W155L125H (excluding rubber bumper)
Weight	1750G (with battery)/ 1370G (without battery)
Number of Fiber	Single
Applicable Fibers	SMF(ITU-T G.652)MMF(ITU-T G.651), DSF(ITU-T G.653),NZDSF(ITU-T G.655), BIF (ITU-T G.657),EDF
Compatible Fiber/Cable	0.25 - 3.0mm/Indoor Cable
Cleaved Length	Diameter: 0.125 - 1 mm/Cleave Length: 8-16mm
Cladding Diameter	80 - 150 um
Splicing Mode	Pre-set 41 splicing modes,max 100 modes
Heating Mode	Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss	SM: 0.02dB / MM:0.01dB/ DS:0.04dB/NZDS: 0.04 dB/G.657:0.02dB (ITU-T Standard)
Return Loss	≥60dB
Lighting	3 White LEDs
Splicing Time	Quick mode: 6s
Estimated Splice Loss	Available
Heating Sleeve Length	20 - 60 mm
Heating Time	Quick heating time: 13s, typical heating time: 30s
Results Storage	20000 latest records & 200 images
Tension Test	1.96 - 2.25N
Operating Condition	Operating Altitude: 0-5000m above sea leve, 0-95% relative humidity,- 10~50 ℃,Max Wind 15m/s
Storage Condition	0 ~95% relative humidity,-40 ~80℃
Display	90° bi-directional view, 4.3" Color High Resolution Display
Fiber View & Magnification	X，Y，XY，X/Y:380X Magnification
Power Supply	AC150V-250V,50Hz,DC Input 12 - 15V
No.of Splice/Heating with Battery	4800mAh Battery Capacity, Typical 230 times (Splice + Heat)

Products Features

* Auto splice mode manifest user-friendly design
* Dust-proof,water-proof, high-temperature resistance, adapting to various altitude and fomidable nature conditions
* 4.3" high resolution color LCD touch screen, 380X magnification, visible clearly with bare eyes

* Packed with detachable 480OmAh battery, designed for continuous operation of 230 times of splicing and heating
* 3 high-power white LEDs and illuminated keypads simplifies your work at night

* Detachable multifunction fixture,suitable for various fiber type

* German CNC technique and integrated fiber-adjust frame, which make performance much stable
* Built-in Japanese components and Korean chipset

Application

* FTTX, FTTH, CATV projects
