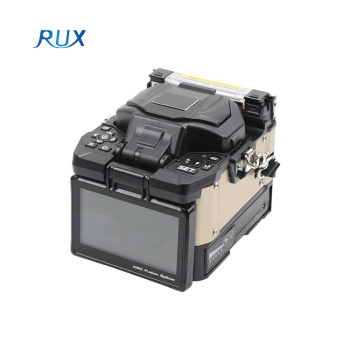

Automatic Intelligent Ftth Clad Fusion Splicer FST-16H 4 Motors Fiber Fusion Splicer Machine

group name: Fiber Optic Fusion Splicer

Min Order: 1 piece

brand name: RUX

model: FST-16H

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Wed, 22 Jan 2025 16:12:16 GMT

contact supplier

Paramtents

Alignment Cladding
Dimension 140W*165L*138H
Weight 1.8kg (include battery )
Return Loss ≥60dB
Operating Methods Button/Touch Screen
Splicing Time SM fast mode 6s

Packging & Delivery

Min Order1 piece

Briefing

Automatic Intelligent Ftth Clad Fusion Splicer FST-16H 4 Motors Fiber Fusion Splicer Machine

Detailed

Description

Automatic Intelligent Ftth Clad Fusion Splicer FST-16H 4 Motors Fiber Fusion Splicer Machine

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Technical Data

ITEM	Technical Parameters
Appicable Fibers	SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable	0.25-3.0mm/Indoor Cable
Cleaved Length	Coating Diameter: 0.125-1mm/Cleave length:8-16mm
Splicing Mode	Preset 41 splicing modes, storable 100 modes
Typical Splice Loss	0.01-0.05dB
Return Loss	≥60dB
Lighting	Three powerful white LED and illuminated keypads
Splicing Time	SM fast mode: 6s
Estimated Splice Loss	Yes
Protection Sleeve Length	20-60mm
Heating tank	Preset 5 kinds of heating tube: 20/30/40/50/60mm
Heating Time	Typical Heating Time: 30s，optional 10-900s
Results Storage	1000 records
Tension Test	1.5-2.0N
Display	90° bi-directional view,4.3" high resolution display with touch screen
Fiber View & Magnification	X,Y,XY,X/Y:380×Magnification
Power Supply	AC Input 100-240V,DC Input 12-15V
Battery capacity	5200mAh battery capacity
Heating times	typical above 280 times(splicing+heating)
Operating Methods	Button/Touch Screen
Automatic Calibration	Automatic ARC calibration by air pressure and temperature
Electrode Life	3000 ARCS, can be extended by using an electrode grinder
Alignment	Cladding
Terminal	USB 2.0
Weight	1.8 KG (include battery )
Dimension	140W165L138Hmm (including rubber Bumper)
Operating Condition	Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
Storage Condition	0~95% relative humidity, -40~80℃; battery storage: -20~30℃

Products Features

* V-groove cladding alignment, high quality and low splicing loss
* Auto splice mode manifest user-friendly design

* Dust-proof, water-proof, high temperature resistance, adapting to various altitude and formidable nature conditions

* 4.3" high resolution LCD touch screen with 380X magnification, visible clearly with bare eyes

* Packed with detachable 5200 mAh battery, morethan 280 times of splicing and heating

* High power LED light simplifies night work

* None-mirror design reduce maintenance work

* Detachable multifunction fixture, suitable for various fiber type

Application

* FTTX, FTTH, CATV projects
