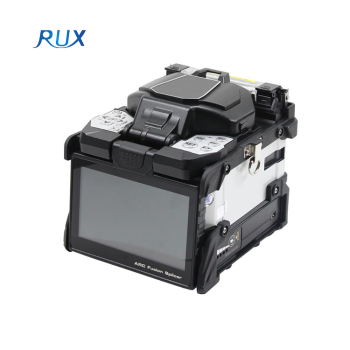

Ftth Fttx Equipment Splicing Machine FST-83A 4 Motors Fttx Active Digital Core Alignment Fusion Splicer

group name: Fiber Optic Fusion Splicer

Min Order: 1 piece

brand name: RUX

model: FST-83A

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:16:41 GMT

contact supplier

Paramtents

Lighting 3 White LEDs
Dimension 140W*165L*148H
Weight 2.28 KG (with battery)
Return Loss ≥60dB
Operating Methods Button/Touch Screen
Splicing Time Quick mode 6s

Packging & Delivery

Min Order1 piece

Briefing

Ftth Fttx Equipment Splicing Machine FST-83A 4 Motors Fttx Active Digital Core Alignment Fusion Splicer

Detailed

Description

Ftth Fttx Equipment Splicing Machine FST-83A 4 Motors Fttx Active Digital Core Alignment Fusion Splicer

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Technical Data

ITEM	Technical Parameters
Number of Fiber	Single
Appicable Fibers	SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable	0.25-3.0mm/Indoor Cable
Cleaved Length	Diameter: 0.125-1mm/Cleave Length:8-16mm
Cladding Diameter	80- 150 μm
Splicing Mode	Pre-set 41 splicing modes, max 100 modes
Heating Mode	Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB/ DS: 0.04dB/ NZDS: 0.04 dB/ G.657: 0.02dB (ITU-T Standard)
Return Loss	≥60dB
Lighting	3 White LEDs
Splicing Time	Quick mode: 6s
Estimated Splice Loss	Available
Heating Sleeve Length	20-60mm
Heating Time	Quick heating time: 13s, typical heating time: 30s
Results Storage	20000 latest records & 200 images
Tension Test	1.96 - 2.25N
Display	90° bi-directional view, 5.0" Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y: 500X Magnification
Power Supply	AC Input 100 - 240V, DC Input 12- 15V
No. of Splice/Heating with Battery	5200mAh Battery Capacity, Typical 250 times (Splice + Heat)
Operating Methods	Button/Touch Screen
Automatic Calibration	Automatic ARC calibration by air pressure and temperature
Electrode Life	5000 arcs
Terminal	Mini USB 2.0
Weight	2.28 KG (with battery)/ 1.9 KG (without battery)
Dimension	136W160L148H (excluding rubber bumper) / 140W165L148H (including rubber bumper)
Operating Condition	Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s
Storage Condition	0~95% relative humidity, -40~80℃

Products Features

* FTTx Active V-groove Fusion Splicer
* DACAS-Digital Analysis Core Alignment Systems * 5“high resolution color LCD touch screen, 500X magnification, visible clearly with bare eyes
* Packed with detachable 5200mAh battery, more than 250 times of splicing and heating
* Auto-splicing mode, using friendly design
* German CNC technique and integrated fiber-adjust frame, which make performance much stable
* 3 high-power white LEDs and illuminated keypads simplifies your work at night
* Detachable multifunction fixture, suitable for various fiber type
* Dust-proof, water-proof, high-temperature resistance ,adapting to various altitude and harsh environment * Optical imaging system ranks No.1 in the world
* Built-in Japanese components and Korean chipset

Application

* FTTX, FTTH, CATV projects
