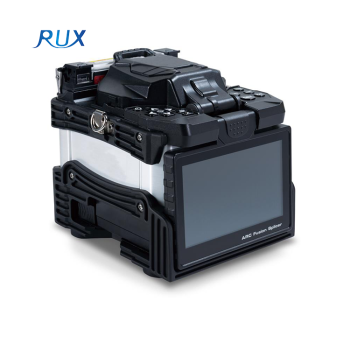

High Precise 6 Motors Backbone Fusion Splicer FST-V9 Ftth Optical Fiber Fusion Splicer Machine

group name: Fiber Optic Fusion Splicer

Min Order: 1 piece

brand name: RUX

model: FST-V9

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:31:59 GMT

contact supplier

Paramtents

Lighting 3 high-power LED white light
Dimension 140W*165L*160H
Weight 2.3 KG (with battery)
Return Loss ≥60dB
Operating Methods Button/Touch Screen
Splicing Time 6-12s

Packging & Delivery

Min Order1 piece

Briefing

High Precise 6 Motors Backbone Fusion Splicer FST-V9 Ftth Optical Fiber Fusion Splicer Machine

Detailed

Description

High Precise 6 Motors Backbone Fusion Splicer FST-V9 Ftth Optical Fiber Fusion Splicer Machine

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Technical Data

ITEM	Technical Parameters
Number of Fiber	Single
Appicable Fibers	SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable	0.25-3.0mm/Indoor Cable
Cleaved Length	Diameter: 0.125-1mm/Cleave Length:8-16mm
Splicing Mode	Pre-set 41 splicing modes, max 100 modes
Heating Mode	Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss	0.01-0.05dB
Return Loss	≥60dB
Lighting	3 high-power LED white light
Splicing Time	6-12s
Estimated Splice Loss	Available
Heating Sleeve Length	20-60mm
Heating Time	Quick heating time: 13s, typical heating time: ≥20s
Results Storage	2000 latest records
Tension Test	1.5 - 2.0N
Display	90° bi-directional view, 5.0" Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y: 500X Magnification
Power Supply	AC Input 100 - 240V, DC Input 12- 15V
No. of Splice/Heating with Battery	5200mAh Battery Capacity, Typical 280 times (Splice + Heat)
Operating Methods	Button/Touch Screen
Automatic Calibration	Automatic ARC calibration by air pressure and temperature
Electrode Life	3000 arcs
Terminal	Mini USB 2.0
Weight	2.3 KG (with battery)
Dimension	140W165L160H
Operating Condition	Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s
Storage Condition	Relative humidity 0-95%, -40~80°C, battery storage: -20~30°C long-term

Products Features

* Fiber type identification function, 6 motors core alignment
* V-groove precise alignment, high quality and low loss
* Auto-splicing mode,using friendly design
* Dust- proof, water- proof,high temperature resistance, adapting to various altitude and harsh environment * 5'high resolution color LCD touch screen, 500X magnification, visible clearly with bare eyes
* Packed with detachable 5200mAh battery, more than 280 times of splicing and heating
* High-power LED white light simplifies your work at night
* Detachable multifunction fixture,suitable for various fiber type

Application

* FTTX, FTTH, CATV projects
