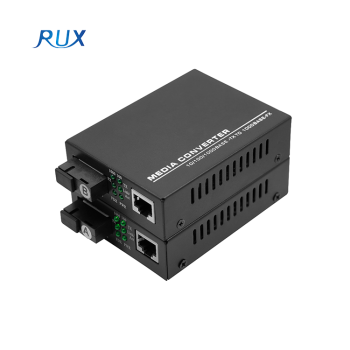

10/100/1000M 1310/1550nm RJ45 Gigabit Ethernet Fiber Optic Media Converter
- group name
- Fiber Media Converter
- Min Order
- 10 piece
- brand name
- RUX
- model
- 10/100/1000M Media Converter
- Nearest port for product export
- Shenzhen, Hongkong, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Sun, 19 May 2024 01:38:30 GMT
Paramtents
Wavelength 1310nm/1490nm/1550nm
Power supply DC 5V/1A output
Transmission Distance 20KM
Ethernet interface 1*10/100/1000M RJ45 Port
Fiber Type Single Fiber Single Mode
Optic interface 1*SC Port
Packging & Delivery
-
Min Order10 piece
Briefing
10/100/1000M 1310/1550nm RJ45 Gigabit Ethernet Fiber Optic Media Converter
Detailed
Description
10/100/1000M 1310/1550nm RJ45 Gigabit Ethernet Fiber Optic Media Converter
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Technical Data
|
ITEM
|
Technical Parameters
|
Number of Network Ports | 1 channel |
Number of Optical Ports | 1 channel |
Transmission Rate | self-adaptive 10/100/1000M |
Protocol supported | IEEE802.3/IEEE802.3U etc. |
Fiber Type | Single Fiber |
Optic mode | Single Mode |
Transmission mode | half / full duplex |
Overall Power | <3W |
|
Ethernet interface
|
RJ45
|
Optic interface | SC/FC/ST |
BER | < 1/1000000000 |
Power supply | AC220V, DC5V/1A |
Working temperature | 0~50°C |
Storage temperature | -40°C~70°C |
Product size (L*W*H) | 94mm*70mm*26mm |
Packing size (L*W*H) | 165mm*130mm*90mm |
N.W/G.W(kg) | 0.14kg/piece 0.23kg/piece |
Products Features
* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
* The UTP port supports the connection of MDI/MDI-X auto crossover.
* Singlemode Fiber: the max distance up to 60km
* Supporting the max 1536 byte Ethernet packet
* Supporting flow control
* Adopting internal power supply
* The UTP port supports the connection of MDI/MDI-X auto crossover.
* Singlemode Fiber: the max distance up to 60km
* Supporting the max 1536 byte Ethernet packet
* Supporting flow control
* Adopting internal power supply
Application
* FTTH system, CATV Network
