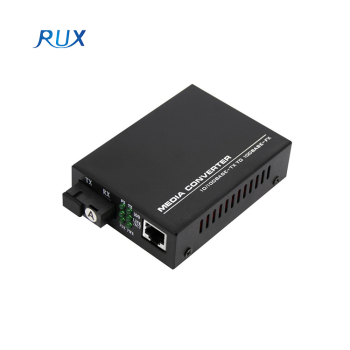

Gigabit 10/100M Ethernet Single SC/UPC Fiber Port Optical Fiber Media Converter

group name: Fiber Media Converter

Min Order: 10 piece

brand name: RUX

model: 10/100M

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:04:13 GMT

contact supplier

Paramtents

Wavelength 1310nm/1490nm/1550nm
Power supply DC 5V/1A output
Transmission Distance 20KM
Ethernet interface 1*10/100M RJ45 Port
Fiber Type Single Fiber Single Mode
Optic interface 1*SC Port

Packging & Delivery

Min Order10 piece

Briefing

Gigabit 10/100M Ethernet Single SC/UPC Fiber Port Optical Fiber Media Converter

Detailed

Description

Gigabit 10/100M Ethernet Single SC/UPC Fiber Port Optical Fiber Media Converter

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.

Technical Data

ITEM	Technical Parameters
Data Rate	100Mbit/s
Wavelength	1310nm/1490nm/1550nm
Transmission Rate	self-adaptive 10/100M
Connector	Single SC/UPC
Fiber Type	Single-mode Fiber
Distance	20~120km
Ethernet interface	RJ45
Power supply	AC220V, DC5V/1A
Working temperature	0~50°C
Storage temperature	-40°C~70°C

Products Features

* Built-in high-performance kernel, Broadcast storm control, Flow control, CRC error checking.

* 100Base-FX fiber-optic transmission standard,Can be interconnected with other products

* Support IEEE802.1D Function

* Completely compatible with IEEE802.3/802.3u auto-negotiation function
* The UTP port supports the connection of MDI/MDI-X auto crossover.
* Singlemode Fiber: the max distance up to 60km
* Supporting the max 1536 byte Ethernet packet

Application

* FTTH system, CATV Network
