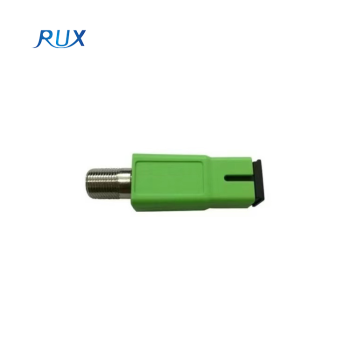

Ftth Catv Solution Mini Female/Male Type Passive Node Optical Receiver

group name: Fiber Optical Accessories

Min Order: 100 piece

brand name: RUX

model: Mini Ftth Optical Receiver

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Fri, 22 Nov 2024 07:10:32 GMT

contact supplier

Paramtents

Received light wavelength 1310~1550nm
Connector Type SC APC
RF output impedance 75Ω
Color Green
Material plastic

Packging & Delivery

Min Order100 piece

Briefing

Ftth Catv Solution Mini Female/Male Type Passive Node Optical Receiver

Detailed

Description

Ftth Catv Solution Mini Female/Male Type Passive Node Optical Receiver

Optical Receiver is to meet the access of optical fiber-to-the home. by the use of optical fiber with FTTH network. analog signal and digital signals go to user home. This device adopts low power optical receiver and optical AGC technology. can provide with high reliable signal quality for the demand of CATV FTTH transmission.

Technical Data

ITEM	Technical Parameters
Input optical power	-15~0 dBm
Received light wavelength	1310~1550 nm
Input optical interface	SC/APC
Frequency Range	47~1000 MHz
In-band flatness	1.5 dB
RF output impedance	75 Ω

Products Features

* The Housing adopt high quality plastic,the appearance is high-grade and beautiful,without external power supply,very suitable for family residential use.
* Continuously adjustable attenuation,extremely easy to debug
* The optical receiver part adopts low Noise high sensitivity PIN Optical detector.Digital signal input 10dBm
* The preceding stage adopts full-GaAs MMIC amplification,while the output stage adopts the latest high indicators imported power doubly amplifier module,With high gain,low distortion and ensured the good performance indicators.
* The screw thread inside or outside
* Male or Female is Optional

Application

* FTTH System* CATV
