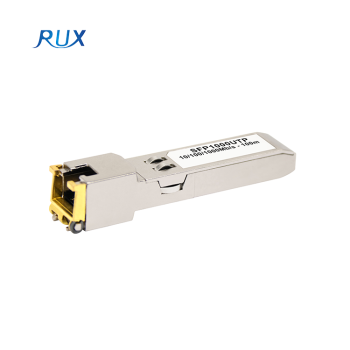

1.25G 10/100/1000M RJ45 Copper SFP Transceiver Module

group name: SFP Transceiver

Min Order: 10 piece

brand name: RUX

model: SFP 10/100/1000M-T

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:32:11 GMT

contact supplier

Paramtents

Data Rate 1.25Gb/s
Connector Copper RJ45
Distance 100m
Fiber Type Cat5e
Temperature 0°C-70°C

Packging & Delivery

Min Order10 piece

Briefing

1.25G 10/100/1000M RJ45 Copper SFP Transceiver Module

Detailed

Description

1.25G 10/100/1000M RJ45 Copper SFP Transceiver Module

SFP-10/100/1000M-T Copper Small Form Pluggable (SFP) Transceivers is high performance , cost effective module compliant with the Gigabit Ethernet and 1000 BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data rate up to 100 meters reach over unshielded twisted-pair category 5 cable.

Technical Data

ITEM	Technical Parameters
Data Rate	1.25Gb/s
Connector	Copper RJ45
Distance	100m
Fiber Type	Cat5e
Temperature	0°C-70°C
Chip	Taiwan Realtek

Products Features

* Up to 1.25Gb/s bi-directional data links
* Hot-pluggable SFP footprint
* Extended case temperature range (0°C to +70°C )
* Fully metallic enclosure for low EMI
* Low power dissipation (1.05 W typical)
* Compact RJ-45 connector assembly
* Access to physical layer IC via 2-wire serial bus
* 1000 BASE-T operation in host systems with SERDES interface
* 10/100/1000Mbps compliant in host systems with SGMII interface
* Compliant with Specifications for IEEE802.3Z
* Compliant with Bellcore TA-NWT-000983
* Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
* RoHS Compliant

Application

* Fast & Gigabit Ethernet Over Category 5 Cable
* Link Switch/Router
* High Speed I/O for servers
