FTTH Solutions XPON ONT HG8310M 1GE Single Port GPON Terminal EPON GPON ONU

group name: GPON EPON ONU

Min Order: 10 piece

brand name: RUX

model: HG8310M

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:54:25 GMT

contact supplier

Paramtents

Ports 1GE
Color White
Down link LAN interface GPON
Wavelength Tx 1310nm, Rx1490nm
Power supply 12VDC
Application FTTH FTTB FTTX Network

Packging & Delivery

Min Order10 piece

Briefing

FTTH Solutions XPON ONT HG8310M 1GE Single Port GPON Terminal EPON GPON ONU

Detailed

Description

FTTH Solutions XPON ONT HG8310M 1GE Single Port GPON Terminal EPON GPON ONU

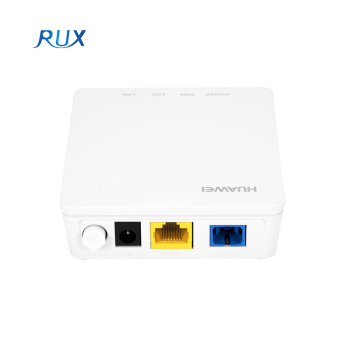

GPON ONU HG8310M optical network terminal (ONU) is a indoor optical network terminal in FTTX solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8310M provides one 10/100/1000M Base-T Ethernet port for connecting to a home gateway. The home gateway then can be connected to a PC, Mobile Terminal, STB, or Video phone to provide high-speed data, video services.

Technical Data

ITEM	Technical Parameters
Fiber port	1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/PC
RX sensitivity	<-28dBm (1490nm)
WLAN	IEEE802.11b/g/n,300Mbps, a built-in antenna
LAN	1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput	Throughput can reach 900Mbps or more
DC power	12V 1A, external AC-DC power adapter
Button	Reset, power
Power	≤8W
Operation	Working temperature: -5-+55℃ Working humidity:10-90%(non-condensation)
Storage	Storage temperature: -30℃-+60℃ Storage humidity: 10-90%(non-condensation)
Dimension	13010530mm(lengthwidthheight)
Net weight	≤0.4Kg

Products Features

* Conform to IEEE802.3ah standard.
* Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services.
* Support frame filtering and suppression.
* Support standard 802.1Q Vlan function, support VLAN conversion.
* Support 4094 VLANs (802.1Q).
* Support Dynamic Bandwidth Allocation (DBA) function.
* Support QoS, including traffic flow classification, priority marking, queue anddispatch, traffic shaping and traffic control, etc.
* Single ONU supports up to 1 LLID.
* Support IGMP Snooping.
* Support Ethernet port ratelimit loop detection.
* Support power failure alarm.
* Support lightning protection for power supply and lightning protection for service port.

Application

* FTTH FTTB FTTX Network
