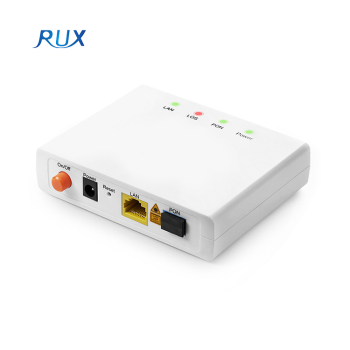

XPON EPON GPON ONU 1GE Single Port Optical Modem FTTH Support GEPON ONT

group name: GPON EPON ONU

Min Order: 10 piece

brand name: RUX

model: GPON/EPON ONU

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:24:49 GMT

contact supplier

Paramtents

Size 105mml(L) x85mm(W) x25mm(H)
Color White
Interface Type SC-UPC/SC-APC
Network coverage radius 20KM
Operating temperature 0°C~60°C
Application FTTH FTTB FTTX Network

Packging & Delivery

Min Order10 piece

Briefing

XPON EPON GPON ONU 1GE Single Port Optical Modem FTTH Support GEPON ONT

Detailed

Description

XPON EPON GPON ONU 1GE Single Port Optical Modem FTTH Support GEPON ONT

This product is for broadband access market based on the introduction of EPON & GPON technology passive optical network terminal products. lt' s with EPON/GPON OLT are used together to provide a complete broadband access solution. lt 's suitable for home or business users, and can meet the FTTH high-speed data transmission of the application.

Technical Data

ITEM	Technical Parameters
Size	105mml(L) x85mm(W) x25mm(H)
GPON Upstream/downstream	1.25Gbps/2.5Gbps
GPON Optical receive sensitivity	≥-28dBm
GPON Continuous light power	0.5dBm~+5dBm
Network coverage radius	20KM
EPON Upstream/downstream	1.25Gbps/1.25Gbps
EPON Optical receive sensitivity	≥-27dBm
EPON Continuous light power	0dBm~4dBm
Security	ONU authentication mechanism
Interface Type	SC-UPC/SC-APC
Operating temperature	0°C~60°C
Operating humidity	10%～85%(non-condensing)
Storage temperature	-40°℃～80°c
Storage humidity	5%～95%(non-condensing)
Power supply	12V/0.5A DC power interface size:2.1mm/5.5mm
Power Consumptio	＜3

Indicator			Instruction
1	LAN	LAN Port status	Light On:Port connection is normal but no data transmission Flick:Port connection is normal and has data transmission Light Off: Port without connection or connection abnormal
2	LOS	Optical Signals	Light On: No Fiber signal access or fiber signal abnormal Light Off: Fiber signal access normally
3	PON	ONU Register	Light On: Register to OLT equipment normally Flick: On processing to register to OLT equipment Light Off: Fail to register to OLT device or no fiber signal access
4	POW	Power status	Light On: Power On Light Off: Power Off

Products Features

* Support port - based rate limitation and bandwidth control
* ln compliant with IEEE802.3ah & ITU-T G.984 Standard * Up to 20KM transmission distance
* Support data encryption, group broadcasting, port Vlan separation ,etc
* Support Dynamic Bandwidth Allocation(DBA)
* Support ONU auto - discovery/Link detection/remote upgrade of software
* Support port mode of VLAN configuration
* Support power - off alarm function ,easy for link problem detection
* Support broadcasting storm resistance function
* Support port loop detection
* Support ACL to configure data packet filter flexibly
* Support PPPoE/DHCP Server/IPTV/NAT
* Specialized design for system breakdown prevention to maintain stable system
* Support software online upgrading
* Support mac/port/url filter

Application

* FTTH FTTB FTTX Network
