1GE+1FE+1POTS AN5506-02-B MINI GPON ONU

group name: GPON EPON ONU

Min Order: 10 piece

brand name: RUX

model: AN5506-02-B

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Sat, 18 May 2024 19:11:34 GMT

contact supplier

Paramtents

Color White
Operating temperature -5°C~45°C
Power supply DC 12V/1A
Weight 0.14kg
Application FTTH FTTB FTTX Network
Firmware/Interface English

Packging & Delivery

Min Order10 piece

Briefing

1GE+1FE+1POTS AN5506-02-B MINI GPON ONU

Detailed

Description

1GE+1FE+1POTS AN5506-02-B MINI GPON ONU

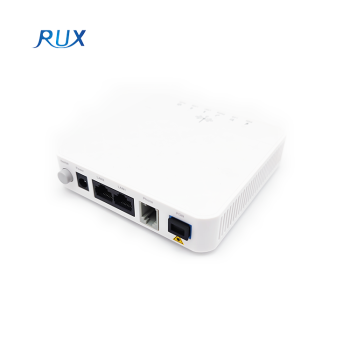

The AN5506-02-B is an FTTH GPON ONU without WiFi. It provides users with communication and entertainment services in the form of data, video,and so on, to meet the integrated access demand of families and small-scaled enterprises.

Technical Data

ITEM	Technical Parameters
UNI	1GE+1FE+1POTS
Indicators	POWER/PON/LOS/LAN1/LAN2/Phone
Power adapter input	100-240 V AC, 50-60 Hz
Color	white
Operating temperature	-5ºC to 45ºC
Storage temperature	-40ºC to 70ºC
Environment humidity	10% to 95%, non-condensing
Power supply	12V/1A DC

Products Features

* the configuration of Ethernet interface rate, working mode, MDI / MDIX adaptive mode and Pause flow control.
* packet filtering and anti-illegal packet attack protection to suppress unknown unicast, broadcast, and multicast packets.
* Ethernet line performance statistics function.
* DHCP Option 60 to report the physical location information of the Ethernet interface.
* H.248, MGCP and SIP, and other voice protocols.
* Support IGMP Snooping; and STP / RSTP agreement.
* GPON system downlink AES-128 algorithm for data encryption.
* Dual-mode management based on DBA technology and priority to ensure that the user’s minimum specified bandwidth requirements.

Application

* FTTH FTTB FTTX Network
