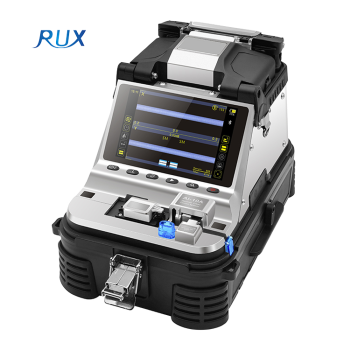

AI-10A Fourth Generation Trunk Line Multi-language Ftth Fiber Splicing Machine Optical Fiber Fusion Splicer

group name: Fiber Optic Fusion Splicer

Min Order: 1 piece

brand name: RUX

model: AI-10A

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Wed, 22 Jan 2025 15:57:43 GMT

contact supplier

Paramtents

Dimension 25.5x16.5mmx23cm
Weight 4.5 KG (with battery)
Display screen 5 inch TFT color
Splicing Time 6s
Battery 7800mah

Packging & Delivery

Min Order1 piece

Briefing

Fusion Splicer AI-10A Ftth Optical Fiber Fusion Splicer Machine

Detailed

Description

Fusion Splicer AI-9 Ftth Optical Fiber Fusion Splicer Machine

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Technical Data

ITEM	Technical Parameters
Fiber alignment	Core/cladding
Motor number	6 motors
Splicing time	6s
Heating mode	15s,can be customized according to the external environment
Fiber type	Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber , drop cable, jumper fiber, drop cable
The cladding diameter	80-150 μm
Splicing loss	0.02dB (SM) 、0.01dB (MM) 0.04dB (DS/NZDS)
Splicing mode	Automatic focusing core alignment, conventional/high precision welding
display	5 inch TFT color display screen

Products Features

* 7800mAh lithium battery
* Six motors Core alignment
* 15s automatic heating
* 6 seconds fast splicing
* Display 5 inch TFT color display screen
* Within VFL and OPM function

Application

* FTTX, FTTH, CATV projects, Trunk Line Construction
