HXB13 2 Core 4 Core Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector Plug/Socket Fiber Optic Connector
- group name
- Fiber Optic Connector Series
- Min Order
- 1 piece
- brand name
- RUX
- model
- HXB13 Connector
- Nearest port for product export
- Shenzhen, Hongkong, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 19:25:03 GMT
Paramtents
Fiber Count 2/4
Connector Type HXB11 HXB13 HXB15
0perating Temperature -40C to 85 ℃
Color Black
Material PVC/LSZH
Packging & Delivery
-
Min Order1 piece
Briefing
HXB13 2 Core 4 Core Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector Plug/Socket Fiber Optic Connector
Detailed
Description
HXB13 2 Core 4 Core Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector Plug/Socket Fiber Optic Connector

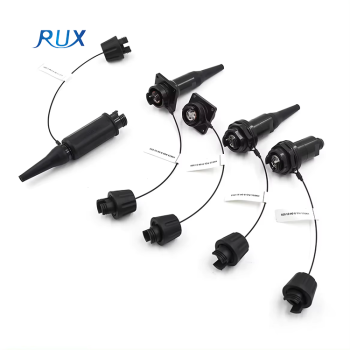

The EXPANDED BEAM Connector HXB13 Connectors, featuring expanded beam technology, hermaphroditic connection, rugged construction for field deployment and hybrid configurability, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining and plant.
Technical Data
|
ITEM
|
Technical Parameters
|
Insertion Loss | Typical 0.8- 1.8 dB@1310,1550 nm Single mode Typical 0.5- 1.0 dB @850,1300 nm Multi mode |
Return Loss | >32dB Single mode only |
Durability | 3,000 mating cycles |
0perating Temperature | -40C to 85 ℃ |
Storage Temperature | -55 C to 85 °C |
Water lmmersion | Up to 15 m |
Free Fall | 500 falls @ 1.2 m |
Vibration | 10 -500 Hz, 3 axis,0.75 mm,10 g |
Shock | 11 ms,3 axis, 50 g |
Products Features
* Advanced expanded beam technology
* Rugged field deployable fiber optic connector
* Hermaphroditic interconnection
* 2 to 4 Optical Channels for Single or Multi-mode
* Custom configuration available
* Environmental sealing(IP68)
* Very high resistance to vibration, shock, environmental effects, dust, and debris
Application
* FTTX, FTTH
