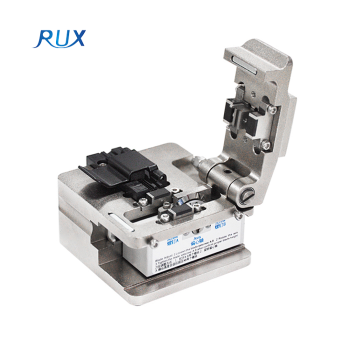

FTTX JW-21N Single Core Fiber Optical Fiber Cutting Tool High Precision Fiber Cleaver

group name: Optical Fiber Cleaver

Min Order: 1 piece

brand name: RUX

model: JW-21N

Nearest port for product export: Shenzhen, Hongkong, Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:15:14 GMT

contact supplier

Paramtents

Cladding diameter 125μm
Average cutting angle Less than 0.8 degrees
Dimensions 59mm(W)*60mm(D) *51mm(H)
Weight 300g
Color Silver

Packging & Delivery

Min Order1 piece

Briefing

FTTX JW-21N High precision optical fiber cutting tool, combined with all energy fixture for single core fiber (250um, 900um, 3.0mm, indoor cable) and 2-12 core ribbon fiber. The cutter blade has 16 surfaces, 2000 times each, and the total service life is more than 36000 times.

Detailed

Description

FTTX JW-21N Single Core Fiber Optical Fiber Cutting Tool High Precision Fiber Cleaver

FTTX JW-21N High precision optical fiber cutting tool, combined with all energy fixture for single core fiber (250um, 900um, 3.0mm, indoor cable) and 2-12 core ribbon fiber. The cutter blade has 16 surfaces, 2000 times each, and the total service life is more than 36000 times.

Technical Data

ITEM	Technical Parameters
Model	HIGH PRECISION FIBER CLEAVER(single core & ribbon Fiber Cleaver)
Cladding diameter	125μm
Cutting length	Single core fiber: 8-20mm/Banded fiber: 10mm
Applied optical fiber cable	Single core fiber: 250um,90oum,3.0mm,lndoor cable/Banded fiber: 2-12 core ribbon cable
Average cutting angle	Less than 0.8 degrees
blade Life	Cut 1000 times a day,3 times of adjustable height, a total of 16, total life 36000 times
Operation steps	The 3 step
Reposition function	Manual reduction of blade
Optical fiber clamp	Single core fiber: Universal fiber clamp / ribbon fiber: replaceable banded fiber clamp

Products Features

* High-precision Fiber Cleaver (compatible Full series Fiber optic cladding machine)
* Easy to operate - in the hands or on the desktop, left and right hands can be
* lt is convenient to put fiber, and the blade is reset manually after cutting, which greatly improves the working efficiency.
* Ingenious design of the press foot to prevent the two back of the knife to cause fiber damage
* Magnesium alloy material is made of high strength, small volume, light weight and beautiful appearance.
* Bottom skid foot to ensure the safety and stability of cutting work

Application

* FTTX
