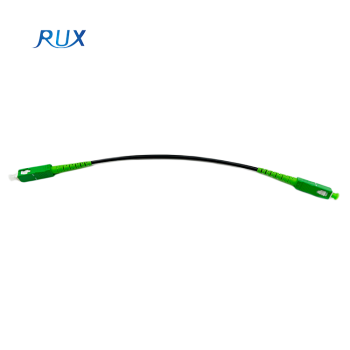

SC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch Cord

SC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch Cord
SC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch CordSC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch CordSC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch CordSC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch CordSC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch Cord
group name
Patch cord/ pigtail
Min Order
10 piece
brand name
RUX
model
SC APC Pushable Assembly PBT Jacket
Nearest port for product export
Shenzhen, Hongkong, Ningbo, Shanghai
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, PayPal, Westem Union, Cash
update time
Thu, 21 Nov 2024 16:59:52 GMT

Paramtents

  • Fiber Type Single Mode G657A2

  • Color Black

  • Jacket Material PBT

  • Cable Diameter (mm) 3.0mm

  • Cable Assembilies Simplex

  • Connector Type SC

  • End Face APC

Packging & Delivery

  • Min Order10 piece

Briefing

SC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch Cord

Detailed

Description

SC APC Pushable Assembly PBT Jacket UV Resistant Fiber Optic Patch Cord

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Technical Data
ITEM
Technical Parameters
Fiber Type
Single Mode G657A2
Cable Assembilies
Simplex
Jacket Material
PBT
Cable Diameter (mm)
3.0mm
Connector Type
SC
End Face
APC
Working Wavelength (nm)
1310/1550
Insertion Loss (dB)
≤0.3dB
Operating Temperature(℃)
-40~85
Products Features
* 1 Core Single Mode Fiber G657A2
* PBT Black Jacket, UV Protected and Riser Rated
* Flexible Armored Tube: OD 1.45mm
* Strength Member:Aramid yarn, water blocking yarn, steel wire
* Fast Deployment:Decreased deployment times and reduced intallation costs by eliminating in-field splicing
* Increased rigidity for pushing/pulling extended distances through a wall or ducted pathway
Application
* Optical fiber communications system
* Optical fiber access networks
* Optical fiber CATV
* Optical fiber test equipments
* Optical fiber data communication
